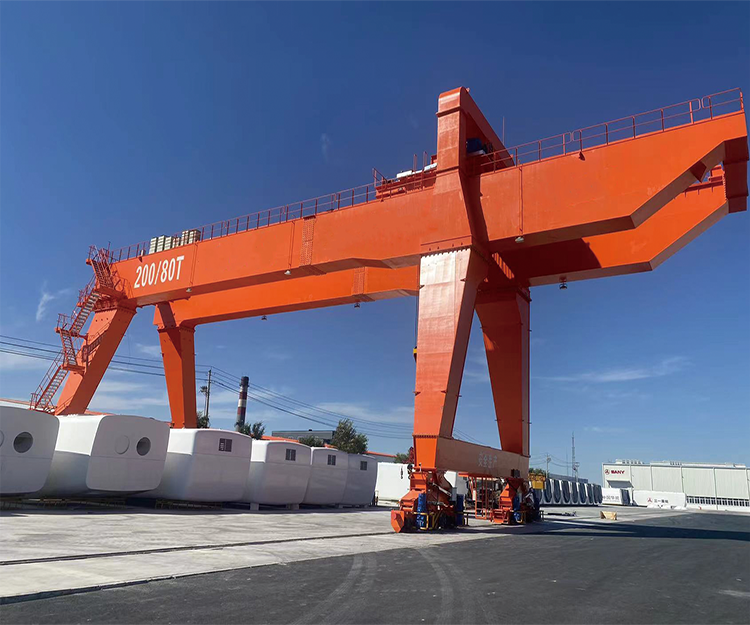

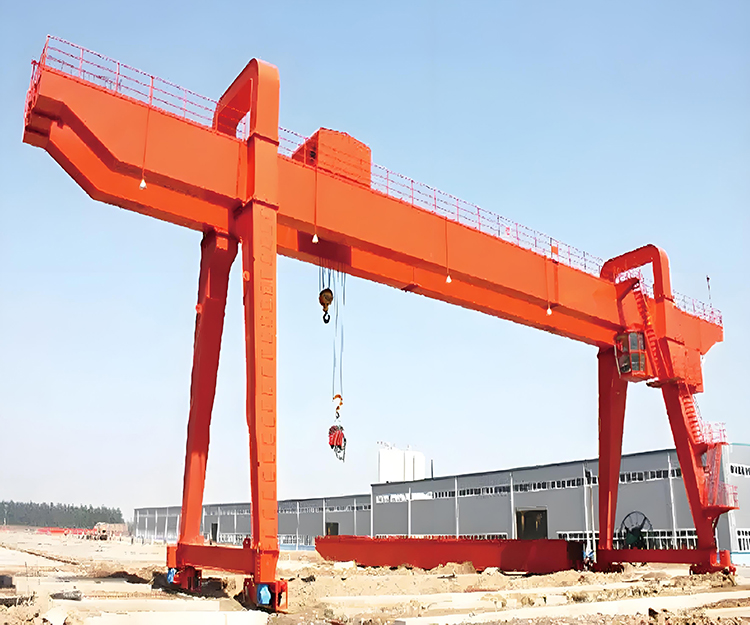

The A-type double beam gantry crane is a heavy-duty gantry crane lifting equipment with a crane hook block. This type of gantry crane has two parallel beams. And it also has an electric trolley that can move along the beams to achieve horizontal material handling. There are two operation modes: ground and control room. The control room has two types: open and closed. It can be installed on the left or right side according to the actual situation. The entrance direction has two types: side and end, to meet the needs of users in various situations.
It is one of the MG types, with a rated lifting capacity of 5-250 tons. The MG (A) double beam gantry crane is suitable for installation in indoor and outdoor environments. Outdoor installation needs to consider the factors of typhoons, wind, and rain. Both sides of the gantry crane adopt an A-frame bracket design, which provides stability and good support.
A-frame gantry crane also has wheels or a track system, allowing the entire machine to move along the ground or track.
|
Product Name |
A-Type Double Girder Gantry Crane |
|
Lifting Capacity |
5-250 ton |
|
Work Duty |
A5 |
|
Span(m) |
18-35 |
|
Lifting Height(m) |
10-14 |
|
Crab travelling(m/min) |
3.3-33/3.4-34/3.8-38/3.7-37 |
|
Trolley travelling(m/min) |
3-30 |
|
Power Source |
3-phase A.C. 50Hz 380V |
|
Operational Method |
Ground Control+Remote Control |
