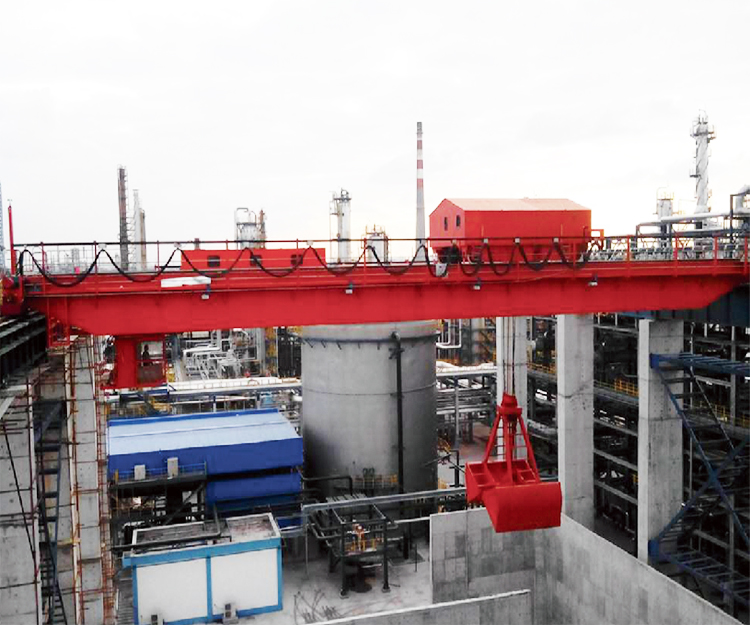

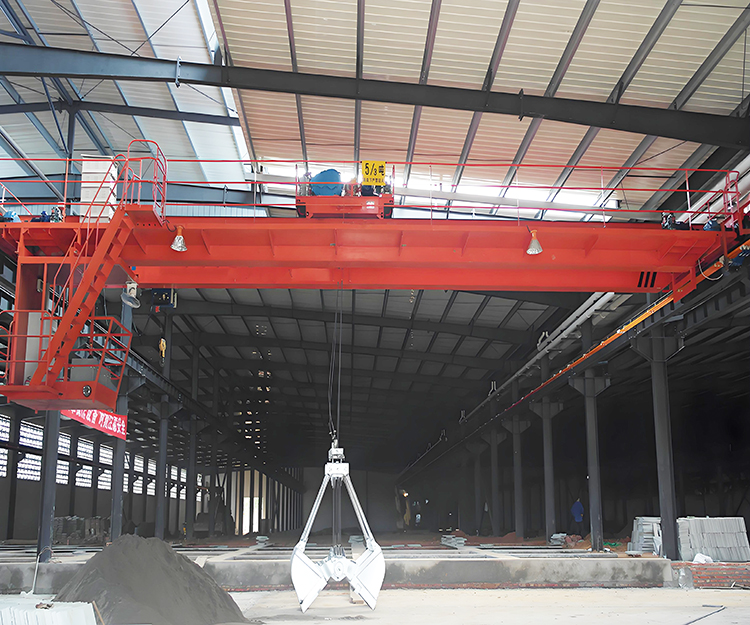

QZ Overhead crane with grab is widely used in loading goods in port,factory, workshop and power plant.
The work classification is heavy.the group classification ofthe crane is A6.
The direction ofplatform door to the driver's cap is:side, end and top.
The lifting capacity includes the weight of the grab.
The open direction ofthe grap is:paralleling with the beam and plumbing with the beam, this design is theplumbing type.
|
Model |
QZ type |
||||
|
Lifting capacity |
t |
5 |
10 |
16 |
20/5 |
|
Max Liffting Height |
m |
20 |
18 |
28 |
26 |
|
Span |
m |
10.5-31.5 |
|||
|
Hoisting speed |
m/min |
39.2 |
39.3 |
41.8 |
45.7 |
|
Trolley traveling speed |
m/min |
44.6 |
45.9 |
43.2 |
43.2 |
|
Trolley traveling speed |
m/min |
93.6 |
112.5 |
87.3 |
87.3 |
|
Power Supply |
3 Phase A.C. 50Hz 380V or others |
||||
