Below are the different types, features, parameters, and applications of bridge cranes. Please choose the right bridge crane according to your needs.
Price Range: $3,100-10,000/set

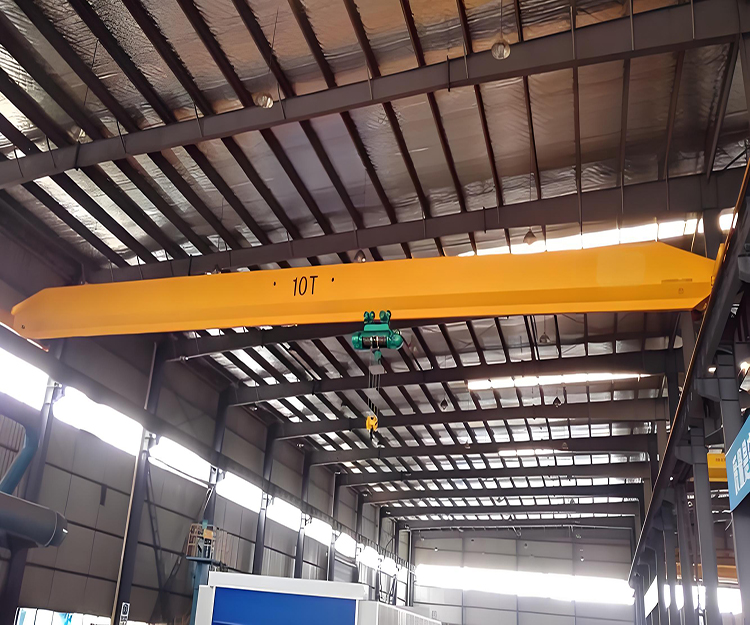

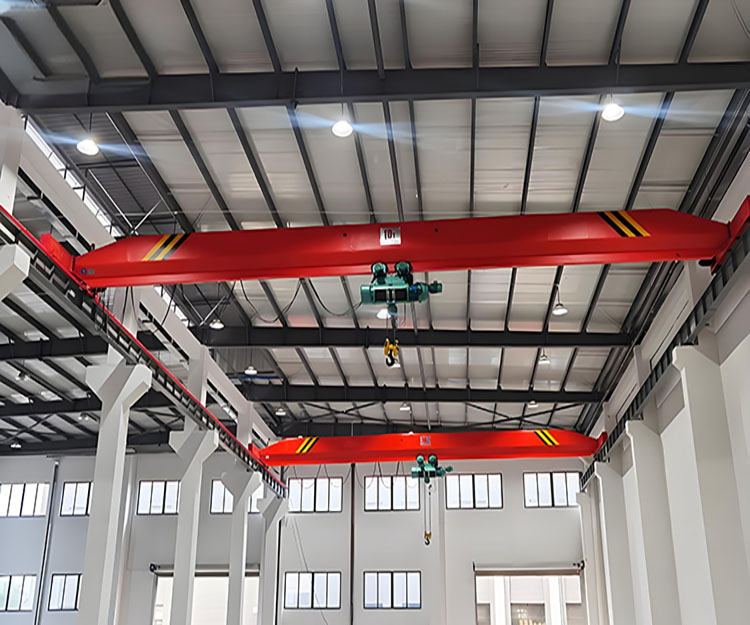

Compact structure, light weight, smooth running, electric drive to achieve precise control, suitable for small and medium tonnage materials efficient handling, especially suitable for plant space is limited in the light and medium-sized operation scenarios.
Price Range: $5,000-10,000/set

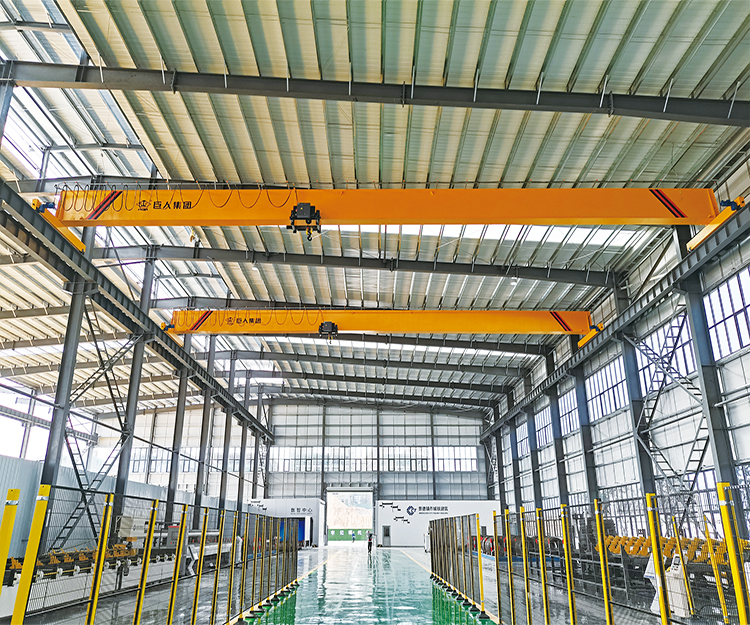

Lightweight, modular design, compact structure, energy saving, high efficiency, equipped with frequency conversion speed control and an intelligent safety system, to improve space utilization and operating accuracy, suitable for precision handling and space-restricted industrial scenarios.
Price Range: $4,000-10,000/set
Adopting a special explosion-proof design and safety protection devices, it can operate safely in flammable and explosive environments. Compact structure, flexible operation, high efficiency, and stability, ideal lifting equipment for petroleum, chemical, and other hazardous places.
Price Range: $3,000-8,000/set

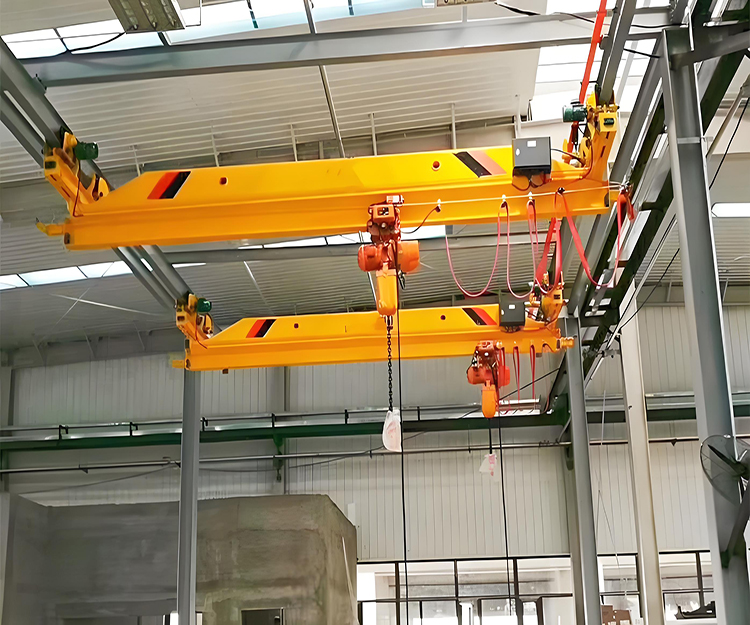

Low headroom design, compact structure, light weight, can be directly suspended from the roof structure to save space, suitable for light material handling operations in workshops and warehouses, and other scenarios, featuring smooth operation and flexible installation.
|
Lifting capacity |
1 Ton |
2 Ton |
3 Ton |
5 Ton |
10 Ton |
20 ton |
32 ton |
|
Span |
3-22.5 m |
||||||
|
Lifting height |
6m, 9m, 12m,18m,24m,30m |
||||||
|
Lifting speed |
8(8/0.8) m/min |
7(7/0.7) m/min |
3.5(0.35/3.5) m/min |
3.3(0.33/3.3) m/min |
|||
|
Hoist traveling speed |
20 m/min |
||||||
|
Crane traveling speed |
20 m/min |
||||||
|
Working class |
A3, A4 |
||||||
|
Power |
Three phase; 380V, 50Hz |
||||||
Note: Can be customized design according to your needs.
