Product Introduction

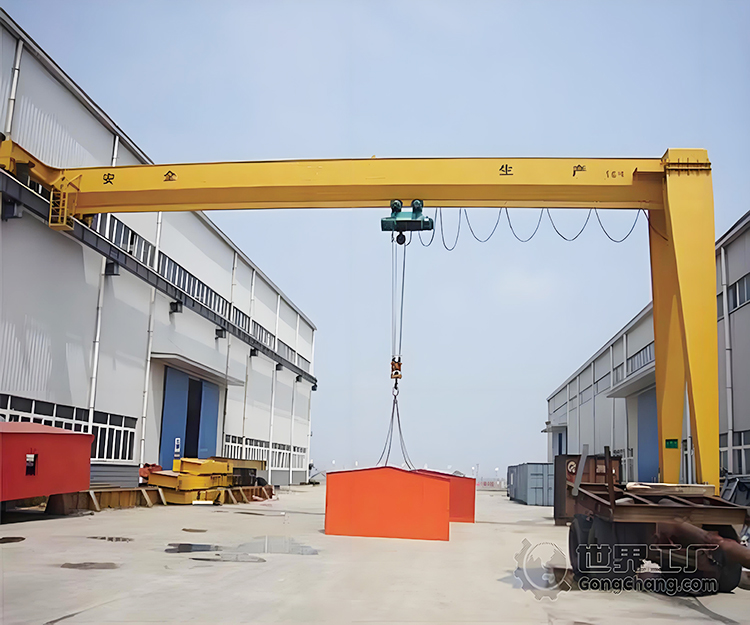

BMH single girder semi gantry crane is a light-duty gantry crane running on rails, which can be used with CD1, MD, HC, and other types of electric hoists. Its lifting capacity ranges from 2-20 tons, span 6-20 meters, applicable to the working environment of -20°C to +40°C, widely used in factories, warehouses, yards, and other common places for lifting goods. The crane is designed to be flexible, with a cantileverless or cantilevered structure according to demand, with outriggers in the form of a package box and rectangular tube, and supporting railed or rail-less operation to meet diversified operational needs.

BMH single girder semi gantry cranes adopt modular and parametric design, compact structure, and are easy to install and maintain. The hoisting mechanism is equipped with a stable, safe, and reliable wire rope electric hoist, and the trolley running mechanism adopts a vertical variable speed or three-in-one driving device to ensure smooth and efficient operation. Flexible and diversified operation modes, supporting handle operation, remote control operation, driver's room operation, or a combination thereof, can adapt to the needs of different working conditions.

In addition, the semi-gantry crane is equipped with a conventional speed control system and multiple safety devices to ensure safe and reliable operation, which is the ideal choice for efficient material handling.

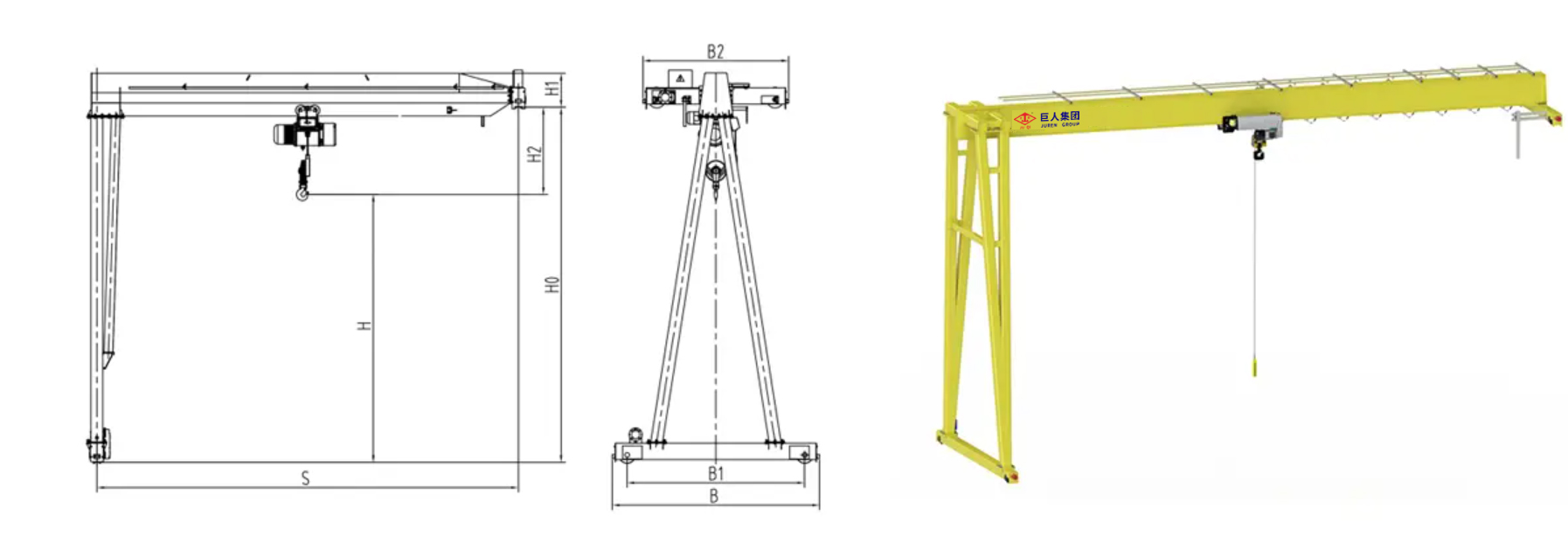

Single Girder Semi Gantry Crane Design

Specifications
